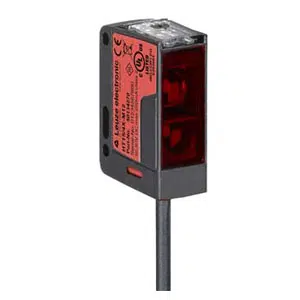

Leuze HT15I/4 | 50134355
Technical Specifications of Leuze HT15I/4 50134355:
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Light Source | LED, Infrared |
Leuze 3-wire conductor diffuse sensor HT15I/4 - 50134355 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 850 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze 3-wire conductor diffuse sensor part no.Leuze HT15I/4 | 50134355 at competitive rates. Here are the brief Technical Specifications of Leuze 3-wire conductor diffuse sensor are 0.012 ... 1 m, Design -, 15 mm x 42.7 mm x 30 mm Dimension, 850 nm Light source, Transistor, PNP Switching Outputs, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, LED, Infrared Sensing Distance, Cable Type of connection, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of https://www.indmall.in/wp-content/uploads/leuze/optical-sensors/leuze-ht15i-4-50134355.jpg. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
