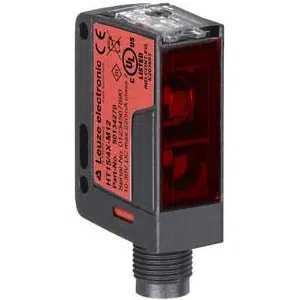

Leuze HT15I/2X-M12 Photoelectric Sensor
Technical Specifications of Leuze HT15I/2X-M12 50134358:
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Light Source | LED, Infrared |
Leuze HT15I/2X-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 850 nm |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP67 |
IndMALL Dealing HT15I/2X-M12 part no.50134358 with the special pricing. Technical Specs Summary of HT15I/2X-M12 are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Infrared Light source, Transistor, NPN Switching Outputs, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.012 ... 1 m Sensing Distance, M12 Type of connection, Plastic Housing material, IP67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 500Hz Switching frequency Diffuse Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
