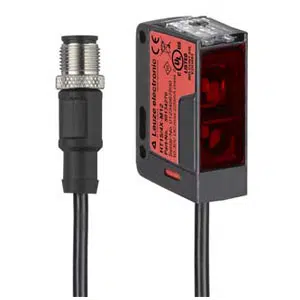

Leuze HT15/4X-2500-M12 | 50141950
Technical Specifications of Leuze HT15/4X-2500-M12 50141950:
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Light Source | LED, Red |
Leuze Black Housing color Diffuse Sensor HT15/4X-2500-M12 - 50141950 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.012 ... 1 m |
| Beam Path | - |
| Light Source | LED, Red |
| Wavelength | 640 nm |
| Supply Voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 2,500 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of Conductors | - |
| Wire cross section | 0.14 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for HT15/4X-2500-M12 part no.50141950 at unbeatable prices. The Main Technical Parameters of HT15/4X-2500-M12 are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.012 ... 1 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Black Housing color Diffuse Sensor. Experience the difference with our competitive pricing and superior support over other Traders.
