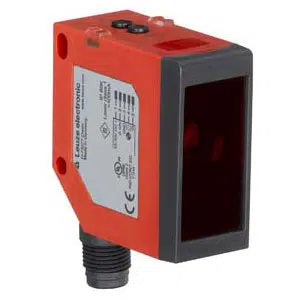

Leuze HT110L1.3/L6T-M12 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT110L1.3/L6T-M12 |
Leuze HT110L1.3/L6T-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Compartment fine positioning Danger zone guarding Push-through protection in pallet warehouse |
| Sensing Distance | 0 ... 5 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Type of light spot geometry | Oval |
| Supply voltage UB | 18 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90Β° |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 23 mm x 50 mm x 50 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C, UL: max. + 45 Β°C |
| Ambient temperature, storage | -40 ... 80 Β°C |
| Degree of protection | IP 66/IP 67 |
Send Us an Email for Leuze 23 mm x 50mm x 50mm Dimensions diffuse sensor HT110L1.3/L6T-M12 part no: 50138062 with budget-friendly prices. Technical Attributes of HT110L1.3/L6T-M12, 50138062 includes Cubic, Design Diffuse reflection principle with background suppression, 23 mm x 50 mm x 50 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC Supply voltage UB, 0 ... 5 m Sensing Distance, Connector, Turning, 90Β° Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Now's the Time to Secure Quote for your requirement of Leuze 23 mm x 50mm x 50mm Dimensions diffuse sensor. Rest assured, our pricing and support outshine other Suppliers.
