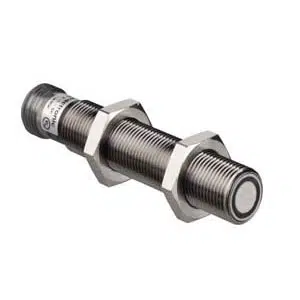

Leuze HRTU 412/2NC.2-S12 Ultrasonic Sensor
The Leuze HRTU 412/2NC.2-S12 Ultrasonic Sensor offers a Cylindrical design, Transistor, NPN output, Connector , 4 -pin. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the 412B Series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HRTU 412/2NC.2-S12 |
Leuze HRTU 412/2NC.2-S12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimension | 12 mm x 70 mm |
| Operating range | 0.04 ... 0.4 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 290 kHz |
| Opening angle | - |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, NPN |
| Switching frequency | 20 Hz |
| Interface Type | - |
| Response time | 25 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -10 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 85 Β°C |
| Degree of protection | IP 67 |
IndMALL Offers Leuze 25 ms Response Time Ultrasonic Sensors HRTU 412/2NC.2-S12 50114000 at unbeatable prices. The Main Technical Parameters of HRTU 412/2NC.2-S12 are 12 mm x 70 mm Dimensions, 0.04 ... 0.4 m Operating Range, 290 kHz Ultrasonic Frequency, - Opening Angle, Transistor, NPN Switching Output, Connector, M12 x 1 mm Thread size, 4 -pin, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 25 ms Response Time Ultrasonic Sensors.
