Diffuse reflection principle with background suppression
Special version
All stainless steel housing
Extra long light spot (XL)
Sensing Distance
0.005 ... 0.1 m
Beam path
Divergent
Light source
LED, Red
Wavelength
620 nm
Type of light spot geometry
Rectangular
Supply voltage UB
10 ... 30 V, DC
Switching Output 1
Transistor, Push-pull
Switching principle
Light switching (PNP)/dark switching (NPN)
Switching Output 2
Transistor, Push-pull
Switching principle
Dark switching (PNP)/light switching (NPN)
Switching frequency
1,000 Hz
Response time
0.5 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Stainless steel
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
14 mm x 35.5 mm x 25 mm
Housing material
Stainless steel
Lens cover material
Plastic with scratch-resistant Indium protective coating
Housing color
Silver
Type of display
LED
Ambient temperature, operation
-30 ... 55 Β°C
Ambient temperature, storage
-30 ... 55 Β°C
Degree of protection
IP 67/IP 69K

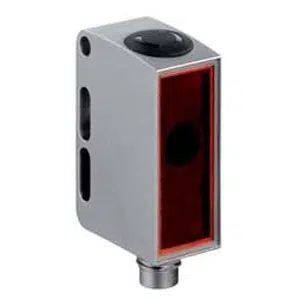

Reach Us by Email for Leuze Plastic with scratch-resistant Indium protective coating diffuse sensor HRTR 55/66-XL-S8 part no: 50107496 at attractive prices. In-depth Technical Analysis of HRTR 55/66-XL-S8, 50107496 feature Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.5 mm x 25 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.005 ... 0.1 m Sensing Distance, Connector M12, AISI 316L Housing material, IP 67/IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Plastic with scratch-resistant Indium protective coating diffuse sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
