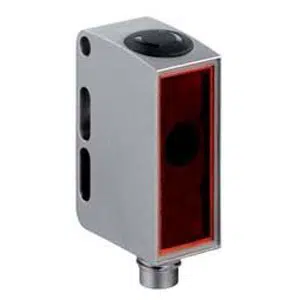

Leuze HRTR 55/44-XL,5000 Photoelectric Sensor
The Leuze HRTR 55/44-XL,5000 Photoelectric Sensor (Part No: ) offers a Cubic design, 0.005 ... 0.1 m sensing distance, Transistor, PNP output, PUR Cable , 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 55/44-XL,5000 |
Leuze HRTR 55/44-XL,5000 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | All stainless steel housing Extra long light spot (XL) |
| Sensing Distance | 0.005 ... 0.1 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 5,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmยฒ |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -30 ... 55 ยฐC |
| Ambient temperature, storage | -30 ... 55 ยฐC |
| Degree of protection | IP 67/IP 69K |
Call us for HRTR 55/44-XL,5000 part no.50116828 with budget-friendly prices. Technical Attributes of HRTR 55/44-XL,5000 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.5 mm x 25 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.005 ... 0.1 m Sensing Distance, Cable Type of connection, Stainless steel Housing material, IP 67/IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze extra long light spot, 2 outputs diffuse sensor. Rest assured, our pricing and support outshine other Suppliers.
