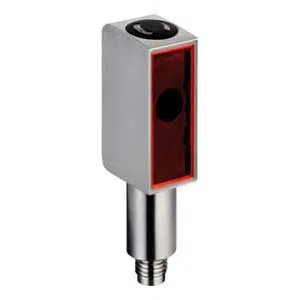

Leuze HRTR 53/6-XL-S8.3 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 53/6-XL-S8.3 |
Leuze HRTR 53/6-XL-S8.3 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Extra long light spot (XL) HYGIENE design |
| Sensing Distance | 0.01 ... 0.09 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 35.6 mm x 20.3 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | -30 ... 55 Β°C |
| Degree of protection | IP 67/IP 69K |
Talk to Our Engineer for Leuze stainless steel, 3-pin diffuse sensor HRTR 53/6-XL-S8.3 part no: 50107508 at unbeatable prices. The Main Technical Parameters of HRTR 53/6-XL-S8.3, 50107508 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.6 mm x 20.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.01 ... 0.09 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67/IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze stainless steel, 3-pin diffuse sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
