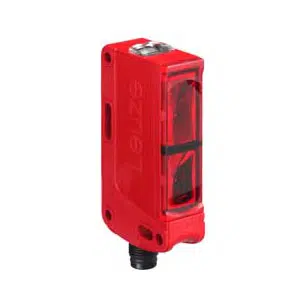

Leuze HRTR 46B/L4.23-S12 | 50114037
Technical Specifications of Leuze HRTR 46B/L4.23-S12 50114037:
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.02 ... 1.8 m |
| Light Source | LED, Red |
Leuze M12 connector and a 4-pin, PNP Dimension diffuse sensor HRTR 46B/L4.23-S12 - 50114037 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.02 ... 1.8 m |
| Beam Path | - |
| Light Source | LED, Red |
| Wavelength | - |
| Supply Voltage UB | 10 ... 30 V, DC |
| Switching Output | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching frequency | 100 Hz |
| Response time | - |
| Function | - |
| Type of connection | Connector |
| Cable length | - |
| Sheathing material | - |
| Cable color | - |
| Number of Conductors | - |
| Wire cross section | - |
| Thread size | - |
| Type | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18.5 mm x 76.9 mm x 43.4 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 69K |
Please speak to our Technical Engineer for HRTR 46B/L4.23-S12 part no.50114037 at unbeatable prices. The Main Technical Parameters of HRTR 46B/L4.23-S12 areCubic, Design Diffuse reflection principle with background suppression, 18.5 mm x 76.9 mm x 43.4 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.02 ... 1.8 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67/IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M12 connector and a 4-pin, PNP Dimension diffuse sensor. Experience the difference with our competitive pricing and superior support over other Traders.
