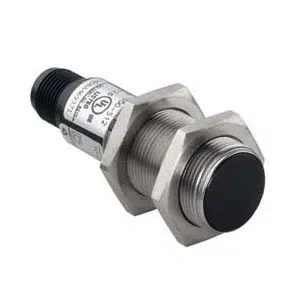

Leuze HRTR 318M/66-120-S12 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 318M/66-120-S12 |
Leuze HRTR 318M/66-120-S12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.001 ... 0.12 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 625 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18 mm x 50 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Ambient temperature, operation | -25 ... 65 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Get A Quote for Leuze M18 x 1 mm Thread size diffuse sensor HRTR 318M/66-120-S12 part no: 50106086 at unbeatable prices. Detailed Specifications of HRTR 318M/66-120-S12, 50106086 feature Cubic, Design Diffuse reflection principle with background suppression, 18 mm x 50 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.001 ... 0.12 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67 degree of protection. atch Your Needs with a Quote for your requirement of Leuze M18 x 1 mm Thread size diffuse sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
