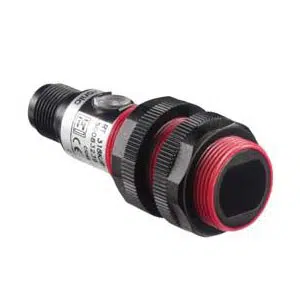

Leuze HRTR 318K/66-120-S12 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 318K/66-120-S12 |
Leuze HRTR 318K/66-120-S12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.001 ... 0.12 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 625 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18 mm x 50 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Ambient temperature, operation | -25 ... 65 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze PA 12 Plastic housing diffuse sensor HRTR 318K/66-120-S12 part no: 50106085 at attractive prices. Key Technical Features of HRTR 318K/66-120-S12, 50106085 are Cubic, Design Diffuse reflection principle with background suppression, 18 mm x 50 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.001 ... 0.12 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze PA 12 Plastic housing diffuse sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
