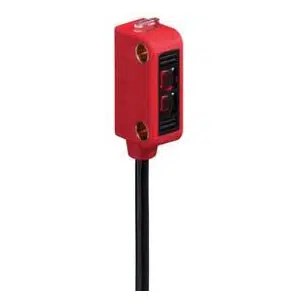

Leuze HRTR 2/42D-30F,150-S12 Photoelectric Sensor
The Leuze HRTR 2/42D-30F,150-S12 Photoelectric Sensor (Part No: 50112120 ) offers a Cubic design, 0.005 ... 0.028 m sensing range, Transistor, PNP output, PVC Cable with connector, 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HRTR Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 2/42D-30F,150-S12 |
Leuze HRTR 2/42D-30F,150-S12 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Detection of small parts |
| Special version | Permanently set range Small light spot (S) |
| Sensing Distance | 0.005 ... 0.028 m |
| Beam Path | Focused |
| Light Source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | Round |
| Focal distance | 16 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Outputs 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 700 Hz |
| Response time | 0.72 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 150 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Wire cross section | 0.14 mmยฒ |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 8 mm x 23.1 mm x 12 mm |
| Housing material | Plastic |
| Plastic housing | TPE |
| Lens cover material | Plastic/PC |
| Housing color | Red, RAL 3000 |
| Type of display | LED |
| Ambient temperature, operation | -20 ... 55 ยฐC |
| Ambient temperature, storage | -30 ... 75 ยฐC |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for HRTR 2/42D-30F,150-S12 50112120 at attractive prices. Technical Specs Summary of HRTR 2/42D-30F,150-S12 are Cubic, Design Diffuse reflection principle with background suppression, 8 mm x 23.1 mm x 12 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Transistor, NPN Switching Outputs 2, Dark switching, M12 Thread size, Plastic/PC, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 16mm Focal distance Diffuse sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
