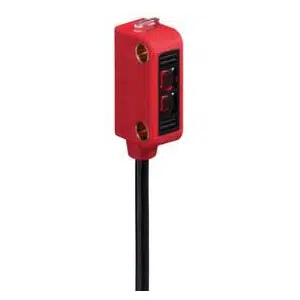

Leuze HRTR 2/42-15F Photoelectric Sensor
The Leuze HRTR 2/42-15F Photoelectric Sensor (Part No: Leuze Detection of small parts Diffuse sensors ) offers a Cubic design, 0.004 ... 0.014 m sensing range, Transistor, PNP output, PVC Cable , 4 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HRTR Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTR 2/42-15F |
Leuze HRTR 2/42-15F Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Detection of small parts |
| Special version | Permanently set range Small light spot (S) |
| Sensing Distance | 0.004 ... 0.014 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | Round |
| Focal distance | 10 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Outputs 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Outputs 2 | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 700 Hz |
| Response time | 0.72 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Wire cross section | 0.14 mmΒ² |
| Number of conductors | 4 -wire |
| Dimension (W x H x L) | 8 mm x 23.1 mm x 12 mm |
| Housing material | Plastic |
| Plastic housing | TPE |
| Lens cover material | Plastic/PC |
| Housing color | Red, RAL 3000 |
| Type of display | LED |
| Ambient temperature, operation | -20 ... 55 Β°C |
| Ambient temperature, storage | -30 ... 75 Β°C |
| Degree of protection | IP 67 |
Send Us an Email for HRTR 2/42-15F 50112109 awith the special pricing. Engineering Specifications of HRTR 2/42-15F are Cubic, Design Diffuse reflection principle with background suppression, 8 mm x 23.1 mm x 12 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Transistor, NPN Switching Outputs 2, Dark switching, 4 -wire Number of conductors, Plastic/PC, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Detection of small parts Diffuse sensors. We excel in offering more cost-effective and supportive solutions than other Dealers.
