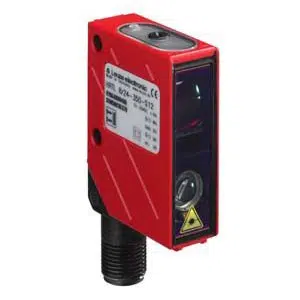

Leuze HRTL 8/66.09-150-S12 Photoelectric Sensor
Technical Specifications of Leuze HRTL 8/66.09-150-S12 50115688:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTL 8/66.09-150-S12 |
Leuze HRTL 8/66.09-150-S12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.025 ... 0.15 m |
| Beam path | Focused |
| Light source | Laser, Red |
| Wavelength | - |
| Type of light spot geometry | Oval |
| Light spot size [at sensor distance] | - |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 2,000 Hz |
| Response time | 0.25 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90Β° |
| Thread size | M12 |
| Type | Male |
| Material | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Plastic housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -10 ... 40 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 69K |
Ask for the Pricing of HRTL 8/66.09-150-S12 part no.50115688 at unbeatable prices. Detailed Specifications of HRTL 8/66.09-150-S12 are Cubic, Design -, 15 mm x 48 mm x 38 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.025 ... 0.15 m Sensing Distance, Connector, Turning, 90Β° Type of connection, Metal Housing material, IP 67/IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.025-0.15 m Operating Range Diffuse sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
