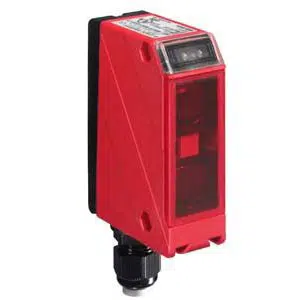

Leuze HRT 96K/R-1690-1200-25 Photoelectric Sensor
The Leuze HRT 96K/R-1690-1200-25 Photoelectric Sensor (Part No: 50025131 ) offers a Cubic design, Relay, NC contact/NO contact output, - Terminal, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRT 96K/R-1690-1200-25 |
Leuze HRT 96K/R-1690-1200-25 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Time function |
| Sensing Distance | 0.1 ... 1.2 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 20 ... 230 V, AC/DC |
| Analog Output 1 | - |
| Switching Output 1 | Relay, NC contact/NO contact |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 20 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Thread size | - |
| Type | - |
| Material | - |
| No. of pins | 5 -pin |
| Encoding | - |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
