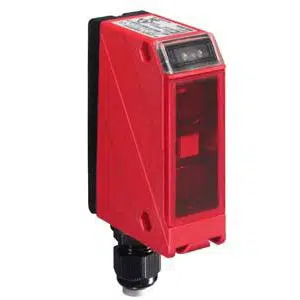

Leuze HRT 96K/P-1600-1200-21 Photoelectric Sensor
The Leuze HRT 96K/P-1600-1200-21 Photoelectric Sensor (Part No: 50025135 ) offers a Cubic design, Transistor, PNP output, - Terminal, 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRT 96K/P-1600-1200-21 |
Leuze HRT 96K/P-1600-1200-21 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.1 ... 1.2 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Analog Output 1 | - |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 300 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Thread size | - |
| Type | - |
| Material | - |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 0.1-6 m Operating range, white 90% diffuse sensor HRT 96K/P-1600-1200-21 part no: 50025135 with cost-effective solutions. Essential Technical Specs of HRT 96K/P-1600-1200-21, 50025135 are Cubic, Design Diffuse reflection principle with background suppression, 30 mm x 90 mm x 70 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.1 ... 1.2 m Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.1-6 m Operating range, white 90% diffuse sensor. Trust in our superior pricing and more dedicated support over other Distributors.
