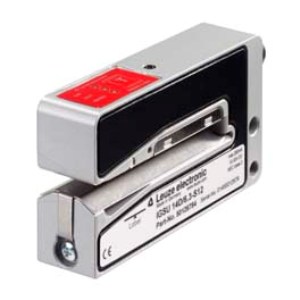

Leuze Ultrasonic Fork Sensor
GSU 14D/66.3-S12
Leuze GSU 14D/66.3-S12 Technical Features:
Indmall provides the Leuze GSU 14D/66.3-S12 ultrasonic fork sensor with part number 50126781, which is part of the GS 14 series and label identification with its fork-type design, and Label Width is 10 mm, Label Gap is 2 mm. The sensor features a Transistor, Push-pull, and Digital switching output, and has an M12 connector 5-pin. It operates on a DC supply voltage ranging from 12 to 30 V DC.
| Part Number | 50126781 |
| Series | 14 |
| Principle of Physics | Ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 10 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | Teach input |
| Supply voltage UB | 12 … 30 V, DC |
| Open-circuit current | 0 … 80 mA |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load Capacity | 0.5 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | Switching signal in label gap |
| Switching(Output 2) principle | Switching signal on label |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 68.5 mm |
| Dimension (W x H x L) | 20.7 mm x 48.2 mm x 101 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Net weight | 270 g |
| Housing color | Black Red |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach buttons |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
The Leuze GSU 14D/66.3-S12 is a label sensor with a principle of physics based on ultrasonics. It is suitable for detecting both transparent and non-transparent labels with a minimum label width of 10 mm and a minimum label gap of 2 mm. This special version features a teach input and a supply voltage UB of 12-30 V DC. The sensor has an open-circuit current of 0-80 mA and an input resistance of 15,000 Ω, with an active switching state of high.
There is one teach input and two digital switching outputs with a maximum switching current of 100 mA. The Label gap sensor Leuze GSU 14D/66.3 S12 switching voltage for the digital outputs is high: ≥(UB-2V) and low: ≤ 2 V. The load capacity of the sensor is 0.5 µF and the switching element is a transistor push-pull. The response time is 0.2 ms with a readiness delay of 300 ms. The maximum bandgeschwindigkeit beim Teach-In is 50 m/min.
The GSU 14D/66D.3-S12 sensor has one connector type of connection with a M12 thread size, and a male type of connector with 5 pins, encoding A-coded. The design of the sensor is a fork with a horizontal plug outlet parallel to belt movement. The mouth width is 4 mm and the mouth depth is 68.5 mm. The dimensions of the sensor are 20.7 mm x 48.2 mm x 101 mm, with a metal housing made of diecast zinc and a net weight of 270 g.
The housing color is black and red, and the sensor has a type of fastening for both mounting thread and through-hole mounting. There are three LED lights for the type of display and operational controls consist of teach buttons. The ambient temperature, operation ranges from 0 to 60 °C, and the ambient temperature, storage ranges from -40 to 70 °C. The sensor has a degree of protection of IP 65 and is certified with c UL US.
