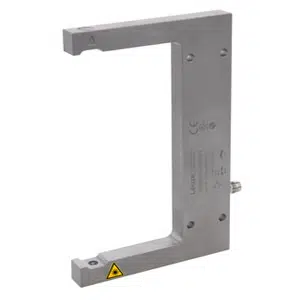

Leuze GSL08B/1.1-120-M8.3 Fork Sensor
The Leuze GSL08B/1.1-120-M8.3 Fork Sensor offers a Fork design, Laser, Red light source, M8 Connector, 3 -pin connection. Manufactured by Leuze under the Leuze Fork Sensor category, this model belongs to the GSL Series.
| Brand | Leuze |
| Product Type | Fork Sensors |
| Product | GSL08B/1.1-120-M8.3 |
Leuze GSL08B/1.1-120-M8.3 Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 08B |
| Application | Detection of small parts |
| MTTF | 547.3 years |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2007 |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.1 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 20 Β΅m |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: β₯(UB-2V) low: β€ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (NPN) / dark switching (PNP) |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 120 mm |
| Mouth depth | 60 mm |
| Dimension (W x H x L) | 12 mm x 144 mm x 90 mm |
| Housing material | Stainless steel; V4A |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 Β°C |
| Degree of protection | IP 67 |
| Net weight | 300 g |
Send Your Inquiry for Leuze 0.1 mm Diameter Fork Sensor GSL08B/1.1-120-M8.3 part no: 50146198 at affordable rates. Core System Specifications of GSL08B/1.1-120-M8.3, 50146198 are 08B series, Laser, Red Light Source, 655 nm Wavelength, 0.1 mm minimum object dimeter, 10 ... 30 V, DC power supply, 20 Β΅m switching hysteresis, 100 mA switching current , Transistor, Push-pull switching element, IO-Link / light switching (NPN) / dark switching (PNP) output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 120 mm mouth width, 60 mm mouth depth, 12 mm x 144 mm x 90 mm dimensions, 1 Piece(s) LEDs, Silver color, IP 67 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze 0.1 mm Diameter Fork Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
