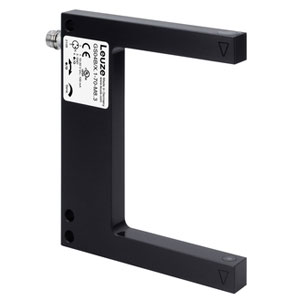

Leuze GS04B/N.1-70-M8.3 Fork Sensor
The Leuze GS04B/N.1-70-M8.3 Fork Sensor offers a Fork design, LED, Red light source, M8 Connector, 3 -pin connection. Manufactured by Leuze under the Leuze Fork Sensor category, this model belongs to the GSL Series.
| Brand | Leuze |
| Product Type | Fork Sensors |
| Product | GS04B/N.1-70-M8.3 |
Leuze GS04B/N.1-70-M8.3 Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 04B |
| Application | Detection of small parts |
| MTTF | 700.42 years |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Laser class | - |
| Transmitted-signal shape | Pulsed |
| Minimum object diameter | 0.3 mm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 30 mA |
| Switching hysteresis | 100 Β΅m |
| Number of digital switching outputs | 1 Piece(s) |
| Output Type | Digital switching output |
| Switching current, max. | 100 mA |
| Switching voltage | high: β₯(UB-2V) low: β€ 2 V |
| Switching element | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector, 3 -pin |
| Design | Fork |
| Mouth width | 70 mm |
| Mouth depth | 55 mm |
| Dimension (W x H x L) | 10 mm x 90 mm x 80 mm |
| Housing material | Metal; Aluminum |
| Lens cover material | Glass |
| Housing color | Black, RAL 9005 |
| Type of fastening | Through-hole mounting |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 60 Β°C |
| Degree of protection | IP 67 |
| Net weight | 62 g |
Reach Us by Email for Leuze 30VDC Fork Photoelectric Sensor GS04B/N.1-70-M8.3 part no: 50146180 at Discounted Rates. Key Technical Features of GS04B/N.1-70-M8.3, 50146180 are 04B series, LED, Red Light Source, 660 nm Wavelength, 0.3 mm minimum object dimeter, 10 ... 30 V, DC power supply, 100 Β΅m switching hysteresis, 100 mA switching current , Transistor, NPN switching element, Light/dark switchable output, 5,000 Hz frequency, M8 Connector, 3 -pin connection, Fork design, 70 mm mouth width, 55 mm mouth depth, 10 mm x 90 mm x 80 mm dimensions, 1 Piece(s) LEDs, Black, RAL 9005 color, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 30VDC Fork Photoelectric Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
