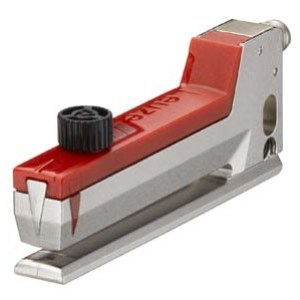

Leuze Forked Sensor
GS 63B/6,200-S12
Brand Leuze Electronics
Model Number GS 63B/6,200-S12
Part Number 50128002
Sensor type Forked Photoelectric Sensor
Leuze GS 63B/6,200-S12 Optical Fork Sensor Technical Features:
The Leuze GS 63B/6,200-S12 is a forked optical sensor with part number 50128002, and it is part of the GS 63 series of fork-type sensors. It is designed for label identification, with a label width and gap of 2mm each. The sensor requires a supply voltage within the range of 10 to 30 V DC and a Connector M8, 4-pin.
| Part Number | 50128002 |
| Series | 63 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal in label gap |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 61 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 80 mm |
| Housing material | Metal Plastic |
| Metal housing | Diecast zinc, chemically nickel-plated |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 55 g |
| Housing color | Red Silver |
| Type of fastening | Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 67 |
| Certifications | c UL US |
Leuze Label Gap Sensor GS 63B/6,200-S12 has a part number of 50128002 and belongs to the GS 63 series of fork-type sensors. It uses an optical principle of physics to detect non-transparent labels with a minimum label width and gap of 2mm each. The sensor requires a supply voltage ranging between 10 and 30 V DC and uses a Cable with connector type of connection with a cable length of 200mm and Thread size M12.
The Leuze GS 63B/6,200-S12 sensor has a 5-pin A-coded Male type with a metal and plastic housing material, including a diecast zinc, chemically nickel-plated metal housing, and a PC plastic housing. The sensor has a mouth width of 3mm and a mouth depth of 61mm with a dimension of 11mm x 30mm x 80mm. The sensor has a degree of protection of IP 67 and has certifications for c UL US.
It has a maximum conveyor speed of 20 m/min during teach-in and has a switching frequency of 10,000 Hz with a response time of 0.05 ms. It has one digital switching output type and uses a transistor push-pull switching element with a high switching voltage of ≥(UB-2V) and a low switching voltage of ≤2V.
The Leuze label Sensor GS 63B/6.01,200-S12 has two LED pieces for display and a multiturn potentiometer for operational controls. The sensor has an ambient operating temperature range of -20 to 60°C and a storage temperature range of -30 to 70°C. The sensor can be fastened via through-hole mounting with the optional mounting device.
