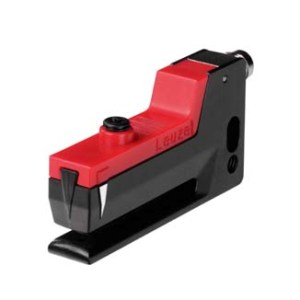

Leuze Forked Sensor
GS 61/6D-S8.3
Brand Leuze Electronics
Model Number GS 61/6D-S8.3
Part Number 50110762
Sensor type Fork Photoelectric Sensor
Leuze Fork Photoelectric Sensor GS 61/6D-S8.3 Technical Features:
The Leuze GS 61/6D-S8.3 sensor is an optical forked sensor that belongs to the GS 61 series. Its part number is 50110762. This sensor is specifically designed to detect non-transparent labels with a label width and gap of 2 mm each. The sensor is equipped with M8 male Connectors 3-pin for easy installation and connectivity. It requires a supply voltage ranging from 10 to 30 V DC
| Part Number | 50110762 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal on label |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 3 -pin |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 20 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
IndMALL provides Leuze Fork Photoelectric Sensor GS 61/6D-S8.3 is an optical forked sensor designed for the detection of non-transparent labels with a label width and gap of 2 mm each. The sensor is part of the GS 61 series and has a part number of 50110762. It operates on the principle of physics, which is optical.
The GS 61/6.2-S8V sensor uses an LED with a wavelength of 940 nm as a light source. It requires a supply voltage ranging from 10 to 30 V DC and has an open-circuit current of 0 to 30 mA. It has one digital switching output that operates as a transistor push-pull switch, with a maximum switching current of 100 mA and a switching voltage of high: ≥(UB-2V) and low: ≤ 2 V. The sensor detects the label using a switching signal on the label, with a switching frequency of 10,000 Hz and a response time of 0.05 ms.
Leuze GS 61/6D-S8.3 optical fork sensor has a mouth width of 3 mm, a mouth depth of 41 mm, and a dimension of 11 mm x 30 mm x 60 mm. It is designed with a plastic housing made of PC and has a lens cover made of plastic/PC. The sensor weighs 20 g and has a black RAL 9005 or red RAL 3000 housing color. It has an operational temperature range of -20 to 60 °C and a storage temperature range of -30 to 70 °C. The sensor has a degree of protection of IP 65 and is c UL US certified.
The Leuze Fork Photoelectric Sensor GS 61/6D-S8.3 is equipped with a multiturn potentiometer for operational controls and LED for display. It can be mounted using a mounting thread, through-hole mounting, or an optional mounting device. The sensor has a male M8 3-pin connector for easy installation and connectivity.
