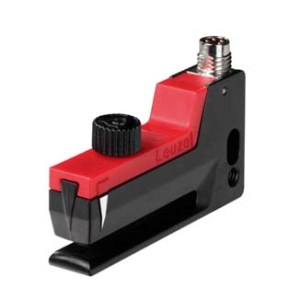

Leuze Forked Sensor
GS 61/6D.2-S8V
Brand Leuze Electronics
Model Number GS 61/6D.2-S8V
Part Number 50110764
Sensor type Fork Photoelectric Sensor
Leuze Fork Photoelectric Sensor GS 61/6D.2-S8V Technical Features:
IndMALL provides Leuze GS 61/6D.2-S8V optical forked sensor with part number 50110764, and it belongs to the GS 61 series of fork-type sensors. The sensor is optical and is specifically designed to detect non-transparent labels with a label width of 2 mm and a label gap of 2 mm. The sensor has M8 male connectors 4-pin. It requires a supply voltage ranging from 10 to 30 V DC.
| Part Number | 50110764 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal on label |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Plug outlet | Vertical (perpendicular to belt movement) |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 20 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach button |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
Leuze Fork Photoelectric Sensor GS 61/6D.2-S8V is an optical fork-type sensor designed to detection of non-transparent labels with a minimum label width and gap of 2 mm. which is part of the IGS 63 series and can be identified by part number part number 50110764. The sensor uses an LED with a wavelength of 940 nm as its light source.
The GS 61/6.2-S8.3 sensor requires a supply voltage ranging from 10 to 30 V DC and has M8 male connectors with 4 pins. It has one digital switching output, which is a transistor push-pull type with a maximum switching current of 100 mA and a switching frequency of 10,000 Hz. The response time is 0.05 ms, and the readiness delay is 300 ms.
The Leuze GS 61/6D.2-S8V has a mouth width of 3 mm, a mouth depth of 41 mm, and a dimension of 11 mm x 30 mm x 60 mm. It has a plastic housing made of PC with a lens cover made of plastic/PC. The net weight of the sensor is 20 g, and it comes in black (RAL 9005) or red (RAL 3000) color. The sensor has an IP 65 degree of protection, and it is certified with c UL US.
Leuze label gap sensor GS 61/6D.2-S8V has a teach button for operational controls and a display with three LEDs. The sensor can operate in temperatures ranging from -20 to 60 °C, and it has a storage temperature range of -30 to 70 °C. It can be mounted using a mounting thread, through-hole mounting, or an optional mounting device.
