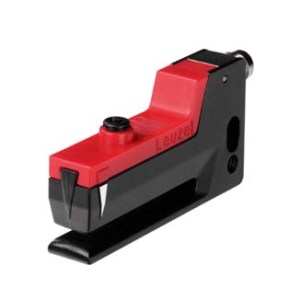

Leuze Optical Fork Sensor
GS 61/6,200-S12
Brand Leuze Electronics
Model Number GS 61/6,200-S12
Part Number 50112423
Sensor type Fork Photoelectric Sensor
Leuze Fork Sensor GS 61/6,200-S12 Technical Features:
IndMALL offers Leuze GS 61/6,200-S12 an optical forked sensor with part number 50112423, belonging to the GS 61 series of fork-type sensors. It is specially designed to detection of non-transparent labels with a label width of 2 mm and a label gap of 2 mm. This sensor comes with a cable length of 200 mm and has an M12 connector 5 pin. To operate, the sensor requires a supply voltage ranging between 10 and 30 V DC.
| Part Number | 50112423 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of teach inputs | 1 Piece(s |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal in label gap |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 70 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
The Leuze GS 61/6,200-S12 is an optical forked sensor with part number 50112423, belonging to the GS 61 series of fork-type sensors. This sensor is specially designed for the detection of non-transparent labels with a label width and gap of 2 mm each. It comes with a cable length of 200 mm and has an M12 connector with 5 pins. The sensor requires a supply voltage ranging from 10 to 30 V DC to operate.
Leuze fork photoelectric sensor GS 61/6.3,200-S12 has a teach input feature, a switching element that is a transistor push-pull, and a switching principle of switching signal in the label gap. It has a response time of 0.05 ms and a readiness delay of 300 ms. The maximum conveyor speed during teach-in is 20 m/min. The sensor has one piece of connection for signal OUT and voltage supply.
It has a plastic housing made of PC material with a lens cover material of plastic/PC. The housing color comes in black (RAL 9005) and red (RAL 3000), and it can be mounted through the mounting thread or through-hole mounting via the optional mounting device. The Leuze GS 61 6,200-S12 optical fork sensor has an IP 65 degree of protection and is certified with c UL US. It has a mouth width of 3 mm and a mouth depth of 41 mm, with a dimension of 11 mm x 30 mm x 60 mm. The sensor has an operational temperature range of -20 to 60 °C for operation and -30 to 70 °C for storage.
