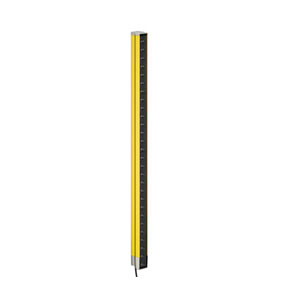

Leuze ELC110R30-900 Safety Light Curtain
| Brand | Leuze |
| Product Type | Safety Light Curtain |
| Model Number | ELC110R30-900 |
Leuze ELC110R30-900 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| Series | ELC100 |
| Device type | Receiver |
| Contains | 2x sliding block |
| Application | Hand protection |
| Functions | Automatic start/restart |
| Resolution | 30 mm |
| Protective field height | 900 mm |
| Synchronization | Optical between transmitter and receiver |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 100 mA |
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) |
| Safety related switching output Type | Safety-related switching output OSSD |
| Switching voltage high, min. | 18 V |
| Switching voltage low, max. | 2.5 V |
| Switching voltage, typ. | 22.5 V |
| Voltage type | DC |
| Current load, max. | 50 mA |
| Load inductivity | 500,000 Β΅H |
| Load capacity | 0.03 Β΅F |
| Residual current, max. | 0.5 mA |
| Voltage drop | 1.5 V |
| O/P 1: Switching Principle | 24 V switching |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | 24 V switching |
| O/P 2: Switching Output | Transistor, PNP |
| Response time | 7.5 ms |
| Restart delay time | 100 ms |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | PUR Cable 300 mm with M12 connector 4 -pin |
| Type | Male |
| Dimension (W x H x L) | 34.7 mm x 915 mm x 39.3 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets |
| Type of display | LED |
| Number of LEDs | 6 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | 0 ... 50 Β°C |
| Ambient temperature, storage | -30 ... 70 Β°C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 1,330 g |
Built as part of the trusted ELC100 series, the Leuze ELC110R30-900 offers reliable protection with a 30 mm resolution and a tall 900 mm protective field height, ideal for guarding wide machine openings. It is a receiver-type safety light curtain that works in synchronization with a transmitter, using optical signals to eliminate the need for additional wiring. The unit operates on a stable 24 V DC power supply (with a tolerance range of -20% to +20%) and maintains a low current consumption of 100 mA, making it both efficient and energy-saving in continuous operations.
Designed with two safety-related switching outputs (OSSDs) using transistor PNP output type, it supports a switching voltage up to 22.5 V, with rapid response time of 7.5 ms. The connection is made easy via a PUR 300 mm cable with a 4-pin M12 male connector, simplifying field installation. The robust construction includes an IP65-rated aluminum housing, diecast zinc end caps, and a plastic/PMMA lens coverβall designed to withstand tough shopfloor conditions. Clear status indication is provided through 6 integrated LEDs, while groove mounting and included brackets ensure secure and flexible installation. With a net weight of 1,330 g and compact dimensions of 34.7 mm x 915 mm x 39.3 mm, the unit fits easily into most automation systems.
Whether you're upgrading a legacy system or deploying new safety measures, the Leuze ELC110R30-900 Safety Light Curtain is a dependable choice backed by proven German engineering and consistent field performance. Visit the Leuze official site for more technical details and certifications.
The Leuze ELC110R30-900 Safety Light Curtain is purpose-built for hand protection in machine areas where worker safety is critical. It is commonly deployed in automated assembly lines, robotic cells, material cutting machines, and packaging units, where any accidental intrusion into the hazard zone needs to be detected instantly. The 900 mm coverage makes it especially suitable for larger openings where taller light curtains are required to comply with safety regulations.
In real-world scenarios, Indian maintenance engineers prefer this model for its plug-and-play M12 connector and easy LED diagnostics. It fits smoothly into existing control panels without the need for complex rewiring. For OEMs and machine builders, the Leuze ELC110R30-900 offers the flexibility to design safety systems that meet international standards without compromising on space, speed, or cost. With a fast response time and sturdy build, it ensures both operator safety and machine uptime.
From Tier 1 manufacturing plants to local automation integrators, the Leuze Safety Light Curtain ELC110R30-900 is a trusted solution that combines precision sensing with industrial-grade reliability. Reach out now to get the best quote, personalized support, and fast delivery for your projectβs safety upgrade.
