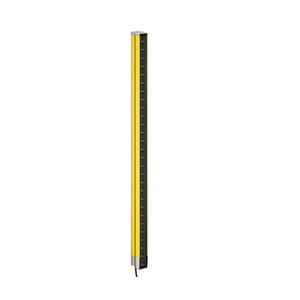

Leuze ELC110R17-600 Safety Light Curtain
| Brand | Leuze |
| Product Type | Safety Light Curtain |
| Model Number | ELC110R17-600 |
Leuze ELC110R17-600 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| Series | ELC100 |
| Device type | Receiver |
| Contains | 2x sliding block |
| Application | Finger protection |
| Functions | Automatic start/restart |
| Resolution | 17 mm |
| Protective field height | 600 mm |
| Synchronization | Optical between transmitter and receiver |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 100 mA |
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) |
| Safety related switching output Type | Safety-related switching output OSSD |
| Switching voltage high, min. | 18 V |
| Switching voltage low, max. | 2.5 V |
| Switching voltage, typ. | 22.5 V |
| Voltage type | DC |
| Current load, max. | 50 mA |
| Load inductivity | 500,000 Β΅H |
| Load capacity | 0.03 Β΅F |
| Residual current, max. | 0.5 mA |
| Voltage drop | 1.5 V |
| O/P 1: Switching Principle | 24 V switching |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | 24 V switching |
| O/P 2: Switching Output | Transistor, PNP |
| Response time | 9.5 ms |
| Restart delay time | 100 ms |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | PUR Cable 300 mm with M12 connector 4 -pin |
| Type | Male |
| Dimension (W x H x L) | 34.7 mm x 615 mm x 39.3 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets |
| Type of display | LED |
| Number of LEDs | 6 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | 0 ... 50 Β°C |
| Ambient temperature, storage | -30 ... 70 Β°C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 930 g |
Built for performance and precision, the Leuze ELC110R17-600 Safety Light Curtain offers a resolution of 17 mm and a protective field height of 600 mm, making it ideal for finger detection applications. The unit operates on a stable 24 V DC supply with a Β±20% tolerance and consumes only 100 mA, ensuring energy efficiency. Designed as a receiver device in the ELC100 series, it uses optical synchronization for seamless alignment with the transmitter.
This model features two safety-related PNP transistor outputs (OSSDs) with a typical switching voltage of 22.5 V, and a fast response time of just 9.5 ms, supporting high-speed operations. Built to handle industrial environments, it includes short-circuit and overvoltage protection, a rugged aluminum housing, and a PUR 300 mm cable with M12 connector. The unit's compact dimensions of 34.7 x 615 x 39.3 mm and IP65 protection rating make it easy to install even in challenging machine spaces.
Trusted across global manufacturing floors, the Leuze Safety Light Curtain ELC110R17-600 ensures compliance, reduces risks, and improves uptime by providing reliable point-of-operation guarding. With visual status indicators through 6 integrated LEDs and a durable PMMA lens cover, itβs a dependable safety component for critical applications. Engineers trust this model not just for its technical precision, but for the quality assurance that comes with the Leuze brand.
The Leuze ELC110R17-600 Safety Light Curtain is widely used for finger protection in compact machines such as assembly stations, packaging lines, injection molding machines, and small presses. It helps safeguard operators by detecting any interruption in its sensing field, immediately stopping machine motion when fingers or hands cross the beam.
This model is especially beneficial in automation zones where space is limited but safety cannot be compromised. Its quick response time of 9.5 ms and automatic restart function ensure minimal downtime and smooth workflow continuity. The sliding block mounting system and optical synchronization make installation fast and hassle-free, even in tight or retrofitted spaces.
Whether you're a junior technician or an experienced maintenance engineer, integrating the Leuze ELC110R17-600 into your system enhances both safety and efficiency. With robust performance and trusted German engineering, it's a smart choice for any facility prioritizing operator safety and equipment reliability.
