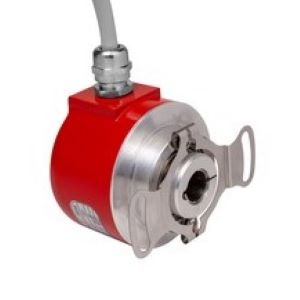

Leuze EI 1058-T14S-0360H-050R Rotary Encoder
The Leuze EI 1058-T14S-0360H-050R Rotary Encoder offers a Hollow shaft design, 360 p/r resolution, PVC, 5,000 mm Cable Length connection. Manufactured by Leuze under the Leuze Rotary Encoder category, this model belongs to the EI 1058 Series.
| Brand | Leuze |
| Product Type | Rotary Encoder |
| Product | EI 1058-T14S-0360H-050R |
Leuze EI 1058-T14S-0360H-050R Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 360 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 5,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Stator coupling, one-sided |
| Design | Hollow shaft |
| Dimension (Ø x L) | 14 mm |
| Dimension (Ø x L) | - |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
Obtain a Quote for Leuze 6,000 r/min Incremental Sensor EI 1058-T14S-0360H-050R part no: 50144344 at economical prices. Specifications Overview for EI 1058-T14S-0360H-050R, 50144344 reveals Incremental rotary encoder, 6,000 r/min operating speed, 360 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply , PVC, 5,000 mm Cable Length, Radial connector, 8 -wire, Stator coupling, one-sided flange type, Hollow shaft design, 14 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Take the First Step with a Quote for your requirement of Leuze 6,000 r/min Incremental Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
