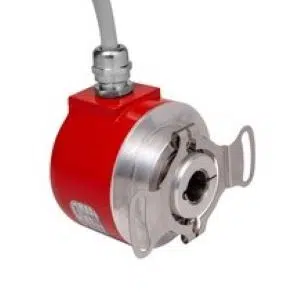

Leuze EI 1058-T08S-1024H-020R Rotary Encoder
The Leuze EI 1058-T08S-1024H-020R Rotary Encoder offers a Hollow shaft design, 1,024 p/r resolution, PVC, 2,000 mm Cable Length connection. Manufactured by Leuze under the Leuze Rotary Encoder category, this model belongs to the EI 1058 Series.
| Brand | Leuze |
| Product Type | Rotary Encoder |
| Product | EI 1058-T08S-1024H-020R |
Leuze EI 1058-T08S-1024H-020R Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 1,024 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 2,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Stator coupling |
| Design | Hollow shaft |
| Dimension (Γ x L) | 8 mm |
| Dimension (Γ x L) | - |
| Start-up torque | 0.5 NΒ·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 Β°C |
| Degree of protection | IP 65 |
Please speak to our Technical Engineer for Leuze Stator Coupling Rotary Encoder EI 1058-T08S-1024H-020R part no: 50144341 at attractive prices. Technical Specs Summary of EI 1058-T08S-1024H-020R, 50144341 includes Incremental rotary encoder, 6,000 r/min operating speed, 1,024 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply , PVC, 2,000 mm Cable Length, Radial connector, 8 -wire, Stator coupling flange type, Hollow shaft design, 8 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Match Your Needs with a Quote for your requirement of Leuze Stator Coupling Rotary Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
