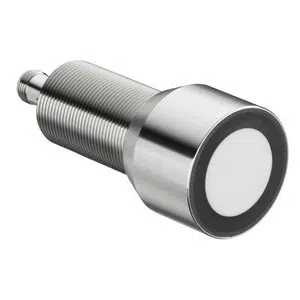

Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor
The Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor measures 600 to 6,000 mm using current output for industrial automation applications today. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 15β30 V DC, supports PNP light switching, and uses a metal M12 connector with IP67/IP68 protection. It belongs to the DMU series and is designed for long-range industrial distance sensing.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU430B-6000/4TC-M12 |
Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 30 mm x 104.3 mm |
| Thread size | M30 x 1 mm |
| Measurement range | 600 ... 6,000 mm |
| Supply voltage UB | 15 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 1.6 Hz |
| Response time | 380 ms |
| Con 1: Function | Signal IN Signal OUT Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 IP 68 |
The Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor is a long-range non-contact sensing device for industrial automation systems. This Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor supports a 600β6,000 mm measurement range, operates with 15β30 V DC, and provides a current-based analog output for stable PLC signal processing. As part of the DMU series, it is engineered for reliable distance monitoring in industrial environments.
The Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor is applied in conveyors, material handling systems, packaging machinery, and large-scale automation lines. Ultrasonic sensing enables consistent object detection independent of color, transparency, or surface texture. The defined switching frequency and response time allow predictable control behavior in long-distance sensing applications.
The Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor combines a robust metal housing, IP67/IP68 protection, and standardized M12 connectivity for dependable long-term operation. Leuze designs the DMU series with emphasis on electrical stability, mechanical durability, and repeatable sensing accuracy. These characteristics make the Leuze DMU430B-6000/4TC-M12 Ultrasonic Distance Sensor suitable for demanding industrial automation use.
