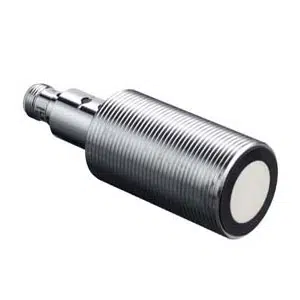

Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor
The Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor measures 300 to 3,000 mm using current output for industrial automation applications today. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 15β30 V DC, supports push-pull switching, and uses a metal M12 connector with IP67/IP68 protection. It belongs to the DMU series for medium-range ultrasonic distance measurement.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU430B-3000.X3/LTC-M12 |
Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 30 mm x 90 mm |
| Thread size | M30 x 1 mm |
| Measurement range | 300 ... 3,000 mm |
| Supply voltage UB | 15 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | NC contact/NO contact |
| Switching frequency | 4 Hz |
| Response time | 125 ms |
| Con 1: Function | Data interface Signal IN Signal OUT Sync-input / configuration interface Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 IP 68 |
The Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor is designed for reliable non-contact distance measurement in industrial automation environments. This Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor offers a 300β3,000 mm measurement range, operates with 15β30 V DC, and provides a current analog output suitable for PLC and control system integration. As part of the DMU series, it supports stable sensing performance across standardized industrial installations.
The Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor is commonly applied in conveyors, packaging lines, automated assembly stations, and material handling systems. Ultrasonic sensing ensures consistent detection regardless of object color, surface finish, or transparency. Defined switching frequency and response time allow predictable signal behavior in medium-range monitoring tasks.
The Leuze DMU430B-3000.X3/LTC-M12 Ultrasonic Distance Sensor combines a robust metal housing, IP67/IP68 ingress protection, and standardized M12 connectivity for dependable long-term operation. Leuze designs the DMU series with focus on electrical stability, mechanical durability, and repeatable sensing accuracy, making it suitable for continuous industrial automation use.
