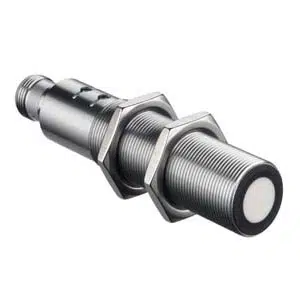

Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor
The Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor measures distances from 25 to 400 mm with voltage output for industrial automation. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 15β30 V DC, supports NC/NO push-pull switching, and uses a metal M12 connector with IP67/IP68 protection. It belongs to the DMU series and is designed for precise short-range sensing.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU418B-400.X3/LTV-M12 |
Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 18 mm x 90 mm |
| Thread size | M18 x 1 mm |
| Measurement range | 25 ... 400 mm |
| Supply voltage UB | 15 ... 30 V, DC |
| Analog output 1 | Voltage |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | NC contact/NO contact |
| Switching frequency | 7 Hz |
| Response time | 71 ms |
| Con 1: Function | Data interface Signal IN Signal OUT Sync-input / configuration interface Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 IP 68 |
The Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor is a compact non-contact sensing device for industrial automation systems. This Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor supports a 25β400 mm measurement range, operates with 15β30 V DC, and provides a voltage-based analog output for accurate control integration. As part of the DMU series, it is used where precise short-distance measurement is required.
The Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor is applied in conveyors, packaging equipment, automated assembly lines, and positioning tasks. Ultrasonic sensing ensures reliable detection regardless of object color or surface finish. The fast response time and push-pull switching output allow stable PLC communication in dynamic automation processes.
The Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor combines a metal housing, IP67/IP68 protection, and standardized M12 connectivity for dependable long-term use. Leuze designs the DMU series with focus on electrical stability, mechanical durability, and repeatable sensing behavior. These characteristics make the Leuze DMU418B-400.X3/LTV-M12 Ultrasonic Distance Sensor suitable for demanding industrial automation environments.
