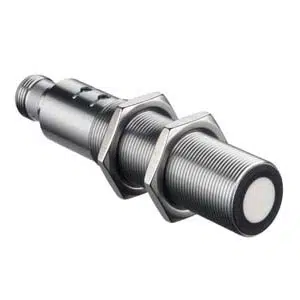

Leuze DMU418B-400.X3/LTC-M12 Ultrasonic Distance Sensor
The Leuze DMU418B-400.X3/LTC-M12 Ultrasonic Sensor offers a 25 ... 400 mm measurement range, Transistor, Push-pull output, M12 Male Connector, and 5 -pin connection. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the DMU200 Series.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU418B-400.X3/LTC-M12 |
Leuze DMU418B-400.X3/LTC-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 18 mm x 90 mm |
| Thread size | M18 x 1 mm |
| Measurement range | 25 ... 400 mm |
| Supply voltage UB | 15 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | NC contact/NO contact |
| Switching frequency | 7 Hz |
| Response time | 71 ms |
| Con 1: Function | Data interface Signal IN Signal OUT Sync-input / configuration interface Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 IP 68 |
Mail Us for DMU418B-400.X3/LTC-M12 50124260 at unbeatable prices. The Main Technical Parameters of DMU418B-400.X3/LTC-M12 are Current, Analog output 1 15 ... 30 V, DC, 18 mm x 90 mm Dimension, Transistor, NPN, NC contact/NO contact, 7 Hz, 71 ms, M18 x 1 mm Thread size, Metal, Metal Housing material, IP 67
IP 68 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze IO-Link ultrasonic distance sensor. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
