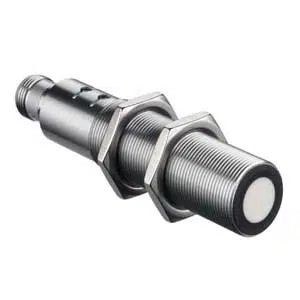

Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor
The Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor measures distances from 150 to 1,300 mm with voltage output for industrial automation. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 15β30 V DC, supports NC/NO push-pull switching, and uses a metal M12 connector with IP67/IP68 protection. It belongs to the DMU series and is intended for demanding industrial automation environments.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU418B-1300.X3/LTV-M12 |
Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 18 mm x 90 mm |
| Thread size | M18 x 1 mm |
| Measurement range | 150 ... 1,300 mm |
| Supply voltage UB | 15 ... 30 V, DC |
| Analog output 1 | Voltage |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | NC contact/NO contact |
| Switching frequency | 8 Hz |
| Response time | 62 ms |
| Con 1: Function | Data interface Signal IN Signal OUT Sync-input / configuration interface Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 IP 68 |
The Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor is a compact non-contact sensing device used in industrial automation systems. This Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor provides a 150β1,300 mm measurement range, operates with 15β30 V DC, and delivers a voltage-based analog output for precise control integration. As part of the DMU series, it is designed for stable distance measurement in Indian industrial environments.
The Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. Ultrasonic sensing ensures reliable object detection independent of surface color, transparency, or texture. The fast response time and push-pull switching output support accurate PLC communication in continuous and dynamic automation processes.
The Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor combines a metal housing, IP67/IP68 protection, and standardized M12 connectivity for dependable long-term operation. Leuze designs the DMU series with emphasis on electrical stability, mechanical durability, and repeatable sensing performance. These characteristics make the Leuze DMU418B-1300.X3/LTV-M12 Ultrasonic Distance Sensor suitable for harsh industrial automation applications.
