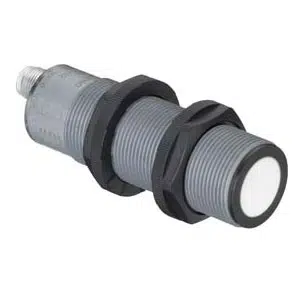

Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor
The Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor measures 250 to 3,500 mm using current output with M30 housing. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor</* operates on 12β30 V DC, supports PNP normally open switching, and uses a plastic M12 connector with IP67 protection. It belongs to the DMU series and is intended for industrial automation environments.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU330-3500.3/4CK-M12 |
Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 30 mm x 98.8 mm |
| Thread size | M30 x 1.5 mm |
| Measurement range | 250 ... 3,500 mm |
| Supply voltage UB | 12 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 2 Hz |
| Response time | 250 ms |
| Con 1: Function | Signal IN Signal OUT Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Plastic |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Plastic |
| Degree of protection | IP 67 |
The Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor is designed for non-contact distance measurement in industrial automation systems. This Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor supports a 250β3,500 mm measurement range, operates with 12β30 V DC, and provides a current-based analog output for stable signal processing. As part of the DMU series, it is used across Indian industrial automation environments.
The Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor is applied in conveyors, packaging machinery, automated handling systems, and assembly lines. Ultrasonic sensing enables reliable object detection independent of surface color or material. The PNP switching output allows direct PLC interfacing, while the defined response time supports predictable operation in standard automation cycles.
The Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor combines a plastic housing, IP67 protection, and standardized M12 connectivity for dependable industrial operation. Leuze designs the DMU series with emphasis on electrical compatibility, mechanical stability, and repeatable sensing behavior. These characteristics make the Leuze DMU330-3500.3/4CK-M12 Ultrasonic Distance Sensor suitable for long-term industrial automation applications.
