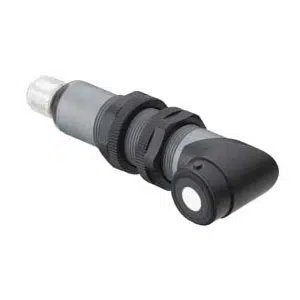

Leuze DMU318-400.W3/2CK-M12 Ultrasonic Distance Sensor
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU318-400.W3/2CK-M12 |
Leuze DMU318-400.W3/2CK-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|
| Dimension (Γ x L) | 18 mm x 88.3 mm |
| Thread size | M18 x 1 mm |
| Measurement range | 50 ... 400 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 10 Hz |
| Response time | 50 ms |
| Con 1: Function | Signal IN
Signal OUT
Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Plastic |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Plastic |
| Degree of protection | IP 67 |
