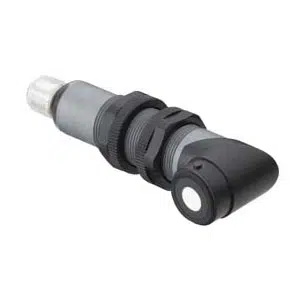

Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor
The Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor measures 150 to 1,600 mm using voltage output for industrial automation applications today. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 10β30 V DC, features NPN switching, and uses a plastic M12 connector with IP67 protection. It belongs to the DMU series for medium-range ultrasonic distance measurement.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU318-1600.W3/2VK-M12 |
Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 18 mm x 88.3 mm |
| Thread size | M18 x 1 mm |
| Measurement range | 150 ... 1,600 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Analog output 1 | Voltage |
| Switching ouput 1 | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 2 Hz |
| Response time | 250 ms |
| Con 1: Function | Signal IN Signal OUT Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Plastic |
| Con 1: No. of pins | 5 -pin |
| Con1: Encoding | A-coded |
| Housing material | Plastic |
| Degree of protection | IP 67 |
The Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor is designed for non-contact distance measurement in industrial automation environments. This Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor provides a 150β1,600 mm measurement range, operates with 10β30 V DC, and delivers a voltage analog output compatible with PLC and control systems. As part of the DMU series, it supports consistent sensing performance across industrial installations.
The Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor is commonly used in conveyors, packaging machinery, automated assembly lines, and material handling systems. Ultrasonic sensing ensures reliable detection regardless of object color or surface texture. The defined switching frequency and response time allow stable signal behavior in continuous automation processes.
The Leuze DMU318-1600.W3/2VK-M12 Ultrasonic Distance Sensor combines a compact plastic housing, IP67 ingress protection, and standardized M12 connectivity for dependable long-term operation. Leuze designs the DMU series with focus on electrical stability, mechanical durability, and repeatable sensing accuracy, making it suitable for industrial automation applications.
