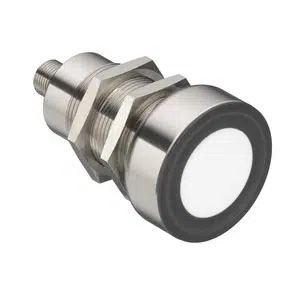

Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor
The Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor measures distances from 600 to 6,000 mm using current output and M30 housing. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 18β30 V DC, supports IO-Link switching, and uses a metal M12 connector with IP67 protection. It is part of the DMU series and is designed for industrial automation environments.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU230-6000/LA-M12 |
Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 45.5 mm x 78 mm |
| Thread size | M30 x 1.5 mm |
| Measurement range | 600 ... 6,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching frequency | 3 Hz |
| Response time | 250 ms |
| Con 1: Function | Signal OUT Teach input Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 4 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 |
The Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor is designed for non-contact distance measurement in industrial automation systems. This Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor provides a 600β6,000 mm measurement range, operates on 18β30 V DC, and delivers a current-based analog output suitable for control integration. As part of the DMU series, it is built to meet consistent sensing requirements across Indian industrial applications.
In practical use, the Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor is applied in conveyors, packaging lines, automated assembly stations, and material handling systems. Ultrasonic sensing allows reliable object detection independent of color or surface finish. The push-pull transistor output and IO-Link compatibility enable stable communication with PLCs, while the defined response time supports predictable operation in continuous automation processes.
The Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor combines a metal housing, IP67 protection, and standardized M12 connectivity for dependable industrial use. Leuze designs the DMU series to ensure electrical compatibility, mechanical durability, and repeatable sensing behavior. These characteristics make the Leuze DMU230-6000/LA-M12 Ultrasonic Distance Sensor suitable for long-term deployment in demanding industrial automation environments.
