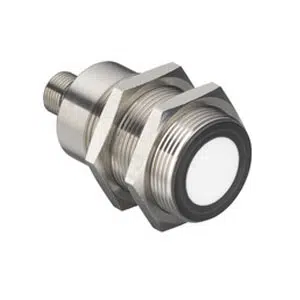

Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor
The Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor measures 300 to 3,000 mm with current output using M30 housing threaded design. Manufactured by Leuze, this Leuze Ultrasonic Distance Sensor operates on 18β30 V DC, supports IO-Link switching, and uses a metal M12 connector with IP67 protection. It belongs to the DMU series and is intended for industrial automation applications.
| Brand | Leuze |
| Product Type | Ultrasonic Distance Sensors |
| Product | DMU230-3000/LA-M12 |
Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (Γ x L) | 30 mm x 60 mm |
| Thread size | M30 x 1.5 mm |
| Measurement range | 300 ... 3,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output 1 | Current |
| Switching ouput 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching frequency | 3 Hz |
| Response time | 170 ms |
| Con 1: Function | Signal OUT Teach input Voltage supply |
| Con 1: Type of connection | Connector |
| Con 1: Thread size | M12 |
| Con 1: Type | Male |
| Con 1: Material | Metal |
| Con 1: No. of pins | 4 -pin |
| Con1: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 67 |
The Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor is designed for non-contact distance measurement in industrial automation systems. This Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor supports a 300β3,000 mm measurement range, operates with 18β30 V DC, and provides a current-based analog output for reliable signal transmission. As part of the DMU series, it is used across industrial automation environments in India.
In practical installations, the Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor is applied on conveyors, packaging equipment, automated assembly lines, and material handling systems. Ultrasonic sensing enables consistent object detection regardless of surface color or reflectivity. The push-pull transistor output and IO-Link compatibility support stable PLC integration, while the defined response time ensures predictable operation in continuous automation workflows.
The Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor combines a metal housing, IP67 protection, and standardized M12 connectivity for dependable long-term use. Leuze designs the DMU series with a focus on electrical compatibility, mechanical durability, and repeatable sensing performance. These characteristics make the Leuze DMU230-3000/LA-M12 Ultrasonic Distance Sensor suitable for demanding industrial automation applications.
