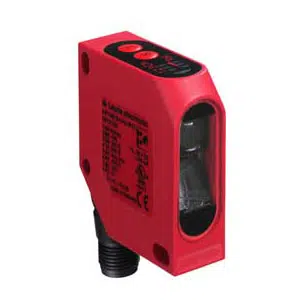

Leuze CRT 448.S3/444-M12 | 50121294
The Leuze CRT 448.S3/444-M12 Color Sensor offers a Cubic design, Transistor, PNP output, Connector, 8 -pin. Manufactured by Leuze under the Leuze Color Sensor category, this model belongs to the 448 Series.
| Brand | Leuze |
| Product Type | Color Sensor |
| Product | CRT 448.S3/444-M12 |
Leuze Detection of Three Color Sensor CRT 448.S3/444-M12, 50121294 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Thread Size | M12 |
| Dimension | 17 mm x 50 mm x 50 mm |
| Application | Detection of three colors |
| Operating range | 12 ... 32 mm |
| Light source | LED, White |
| Light spot size [at sensor distance] | 4 mm |
| Light spot orientation | Round |
| Type of light spot geometry | Round |
| Supply voltage UB | 12 ... 28 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 3 Piece(s) |
| Switching output 1 | Transistor, PNP |
| Switching output 2 | Transistor, PNP |
| Switching output 3 | Transistor, PNP |
| Switching frequency | 500 Hz |
| Type of connection | Connector |
| No. of Pin | 8 -pin |
| Housing material | Plastic |
| Plastic housing | ABS |
| Ambient temperature, operation | -10 ... 55 Β°C |
| Degree of protection | IP 67 |
Get A Quote for Leuze Detection of Three Color Sensor CRT 448.S3/444-M12 50121294 at best price. The Main Technical Parameters of CRT 448.S3/444-M12 are Cubic Design, 17 mm x 50 mm x 50 mm Dimensions, 12 ... 32 mm Operating Range, LED, White Light Source, 4 mm Light Spot Size, Transistor, PNP Switching Output, 500 Hz Switching Frequency, Connector, M12 Thread size, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Detection of Three Color Sensor.
