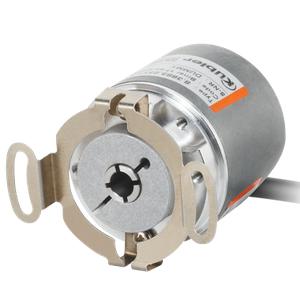

Sendix F3688 - Kuebler Absolute Encoder
The Kuebler Sendix F3688 is a compact and robust absolute rotary encoder engineered for applications that demand high-resolution feedback in tight installation spaces.
| Brand | Kuebler |
| Product Type | Rotary Encoders |
| Model Number | Sendix F3688 |
Kuebler Absolute Encoder Sendix F3688 Technical Specifications
| Specification | Value |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type | 6 mm hollow shaft, blind hole8 mm hollow shaft, blind hole10 mm hollow shaft, blind hole1/4 " hollow shaft, blind hole |
| Flange type | Ø 36.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level | IP65 |
| Connection types | Tangential cable |
| Max. rotational speed | 10.000 min-1 |
| Weight | 200 g |
| Scanning | optical |
| Resolution max. | 16 bits singleturn16 bits multiturn |
| Power supply | 10...30 V DC |
| Interfaces | CANopen |
With a space-saving Ø 36 mm housing, the Sendix F3688 delivers up to 16-bit singleturn and multiturn resolution, enabling accurate absolute position detection in compact machinery. The encoder supports CANopen communication protocol, making it ideal for decentralized control systems and smart industrial networks.
The hollow shaft design offers multiple options, including 6 mm, 8 mm, and 10 mm blind-hole shafts and a 1/4" blind-hole variant. Engineered to operate in demanding environments, the unit tolerates speeds up to 10,000 RPM and temperatures from -40 °C to +85 °C, while the IP65 protection class ensures resistance to dust and water ingress.
The Kuebler Sendix F3688 encoder features a rugged tangential cable connection and a reliable 10–30 V DC power supply. It's ideally suited for use in robotics, textile machinery, mobile equipment, and compact automation systems where performance and space efficiency are critical.
