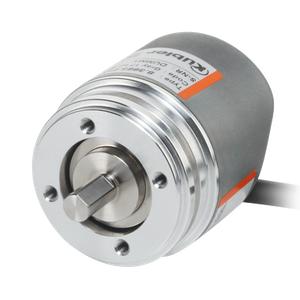

Sendix F3653 - Kuebler Absolute Encoder
The Sendix F3653 from Kuebler is a compact, high-resolution absolute encoder designed for precision motion control in space-constrained industrial environments.
| Brand | Kuebler |
| Product Type | Rotary Encoders |
| Model Number | Sendix F3653 |
Kuebler Absolute Encoder Sendix F3653 Technical Specifications
| Specification | Value |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type | 6 mm shaft, with flat surface8 mm shaft, with flat surface10 mm shaft, with flat surface1/4 " shaft, with flat surface3/8 " shaft, with flat surface |
| Flange type | Ø 36.00 mm |
| Working temperature | -40 °C ... +90 °C |
| Protection level | IP65IP67 |
| Connection types | Tangential cableM12 connector axial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 200 g |
| Scanning | optical |
| Resolution max. | 2.048 ppr incremental17 bits singleturn |
| Power supply | 5 V DC10...30 V DC |
| Interfaces | SSI, binärSSI, graySSI + 2048 ppr SinCosSSI + 2048 ppr RS422BiSSBiSS + 2048 ppr SinCosBiSS + 2048 ppr RS422 |
The Kuebler Sendix F3653 is a rugged optical rotary encoder that delivers hybrid feedback capability — featuring up to 17-bit singleturn absolute resolution and a maximum of 2048 pulses per revolution (PPR) for incremental output. It supports advanced digital protocols including SSI (binary & gray) and BiSS, along with analog-style SinCos and RS422 signals for real-time velocity and position control.
The encoder supports a wide range of shaft options — including 6 mm, 8 mm, 10 mm, 1/4", and 3/8" shafts with flat surfaces — and is housed in a compact Ø 36 mm flange that fits easily into tight installations. Despite its small size, it handles rotational speeds up to 12,000 min⁻¹ and operates in extreme temperatures from -40°C to +90°C, ensuring robust performance across industrial applications.
Built with an IP65/IP67-rated enclosure, the Sendix F3653 offers full protection against dust, water jets, and harsh ambient conditions. It features tangential cable or M12 axial connector options for simplified installation and cabling. Power supply flexibility ranges from 5 V DC to 10–30 V DC, supporting seamless integration into various control systems. Weighing only 200 g, this encoder is ideal for applications requiring lightweight, high-accuracy feedback.
The Sendix F3653 Encoder by Kuebler is purpose-built for motion control applications where compact design and high-resolution absolute and incremental feedback are essential. It is commonly used in robotics, semiconductor machines, packaging lines, and compact servo axes where space is limited but performance cannot be compromised.
Its integrated SSI/BiSS interfaces enable seamless communication with modern control systems, while the optional SinCos and RS422 outputs deliver analog or digital velocity data for advanced drive control. The encoder’s high rotational speed capability, robust IP67 sealing, and reliable signal quality make it suitable for both dynamic environments and mission-critical industrial applications.
Whether you're upgrading high-speed machinery or developing a precision automation system, the Kuebler Sendix F3653 provides accurate, compact, and durable absolute encoder feedback that keeps your operations running with confidence.
