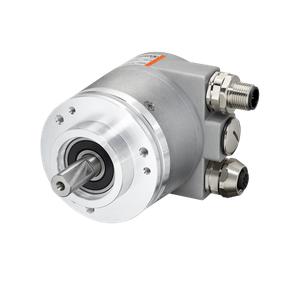

Sendix 5858 - Kuebler Absolute Encoder
The Sendix 5858 by Kuebler is a robust absolute encoder designed for industrial applications requiring accurate position feedback with reliable fieldbus communication.
| Brand | Kuebler |
| Product Type | Rotary Encoders |
| Model Number | Sendix 5858 |
Kuebler Absolute Encoder Sendix 5858 Technical Specifications
| Specification | Value |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type | 6 mm shaft, with flat surface10 mm shaft, with flat surface1/4 " shaft, with flat surface3/8 " shaft, with flat surface |
| Flange type | Synchro flange / Servo flangeClamping flangeSquare flangeØ 58.00 mm❏ 63,50 mm |
| Working temperature | -40 °C ... +80 °C |
| Protection level | IP65IP67 |
| Connection types | Radial cableM23 connector radialM12 connector radialTerminal box |
| Max. rotational speed | 9.000 min-1 |
| Weight | 530 g |
| Scanning | optical |
| Resolution max. | 16 bits singleturn |
| Power supply | 10...30 V DC |
| Interfaces | CANopen |
The Kuebler Sendix 5858 is a precision optical rotary encoder offering 16-bit singleturn resolution for accurate absolute position detection in motion control systems. It supports high-speed rotation up to 9,000 min⁻¹ and operates reliably within a temperature range of -40°C to +80°C, making it ideal for dynamic and harsh industrial environments.
This encoder accommodates multiple shaft types including 6 mm, 10 mm, 1/4", and 3/8" with flat surfaces, and offers versatile flange options such as synchro, clamping, square, and servo flanges in Ø 58 mm and 63.5 mm formats. Its IP65/IP67 protection rating ensures resistance against dust and water ingress, extending its life in demanding conditions.
Electrical connection options include radial cable exits, M12 and M23 connectors (radial), and a terminal box, allowing flexible wiring based on application needs. Operating on a 10–30 V DC power supply, the Sendix 5858 seamlessly integrates into CANopen-based systems for real-time data exchange, diagnostics, and parameter configuration. Weighing just 530 g, it delivers compact performance without compromising durability. Visit the official Kuebler Sendix 5858 product page to learn more.
The Sendix 5858 Encoder from Kuebler is optimized for factory automation, conveying systems, machine tools, and decentralized I/O architectures where accurate absolute position feedback and seamless CANopen communication are critical.
Its compact design and flexible shaft options allow easy integration into servo motors, drive assemblies, and packaging systems. With its IP-rated housing and high vibration resistance, the encoder performs reliably in environments with dust, oil, or continuous movement — making it a solid choice for automotive, textile, and intralogistics sectors.
If your system requires a rugged, high-speed, and CANopen-compatible feedback device, the Kuebler Sendix 5858 delivers reliable absolute encoder feedback with exceptional German engineering quality, built for today's demanding industrial automation challenges.
