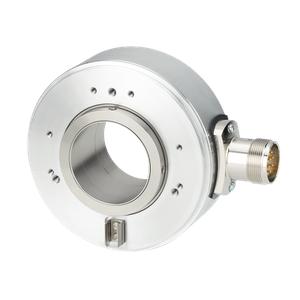

A020 - Kuebler Absolute Encoder
The A020 from Kuebler is a heavy-duty encoder engineered for high-precision incremental feedback in large rotary systems.
| Brand | Kuebler |
| Product Type | Rotary Encoders |
| Model Number | A020 |
Kuebler Absolute Encoder A020 Technical Specifications
| Specification | Value |
|---|---|
| Dimension | Ø 100 mm |
| Shaft type | 20 mm hollow shaft, through24 mm hollow shaft, through25 mm hollow shaft, through28 mm hollow shaft, through30 mm hollow shaft, through38 mm hollow shaft, through40 mm hollow shaft, through42 mm hollow shaft, through1 " hollow shaft, through |
| Flange type | Ø 100.00 mmØ 115.00 mm |
| Working temperature | -40 °C ... +70 °C |
| Protection level | IP65 |
| Connection types | Radial cableM23 connector radialM12 connector radial |
| Max. rotational speed | 3.000 min-1 |
| Weight | 700 g |
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Power supply | 5 V DC5...30 V DC10...30 V DC |
| Interfaces | GegentaktTTL / RS422SinCos |
| on request | Further impulse counters/resolutions |
The Kuebler A020 is a powerful rotary encoder built to deliver reliable incremental feedback for heavy-duty automation. Featuring an optical scanning system and a maximum resolution of 5000 pulses per revolution (PPR), this encoder ensures precise speed and position detection for large shafts in motion control systems. With support for through hollow shafts ranging from 20 mm to 42 mm — including popular sizes like 24 mm, 25 mm, 30 mm, 38 mm, 1" — it is engineered for direct shaft mounting on industrial motors and large rotating equipment.
The encoder is available with Ø 100 mm and Ø 115 mm flange options, providing mechanical compatibility with diverse machine designs. Built to perform in temperatures from -40°C to +70°C, it delivers consistent results even in harsh working environments. Its rugged enclosure meets IP65 standards, offering protection from dust, oil, and splashing water. The radial cable and M12/M23 connector options simplify installation and ensure secure communication in control cabinets and field wiring setups.
Electrically, the Kuebler A020 supports Gegentakt, TTL / RS422, and SinCos interfaces for versatile integration with PLCs, drives, and feedback modules. Power supply options include 5 V DC, 5–30 V DC, and 10–30 V DC, ensuring compatibility with most industrial control architectures. Weighing just 700 g despite its robust frame, this encoder is compact yet strong. Optional variants offer extended resolutions and impulse counters for advanced control scenarios.
The Kuebler A020 Encoder is ideally suited for industrial automation tasks that demand accuracy, ruggedness, and large shaft compatibility. It’s a preferred solution for use in steel rolling mills, crane systems, paper machines, and rotary kilns — where its high-resolution output ensures exact speed and angle tracking under demanding load conditions.
With its large through hollow shaft design and industrial-grade flange options, the encoder is easily mounted onto motor shafts or main drive axles. In wind turbines and material handling systems, it plays a vital role in feedback control, ensuring safe and synchronized motion across large-scale mechanical assemblies. Its robust enclosure and electrical noise immunity also make it suitable for outdoor and electrically noisy environments.
Whether you're engineering a new heavy-duty system or upgrading legacy equipment, the Kuebler A020 offers robust incremental encoder feedback with German-engineered precision, ready to meet your toughest industrial challenges with confidence.
