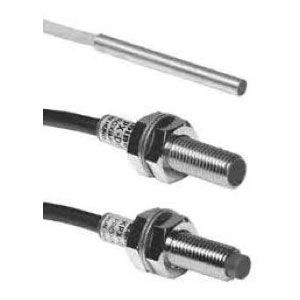

Koino KPX-D08-01 E □ M - Inductive Proximity Sensor
Technical Specifications of Koino Inductive Proximity Sensor KPX-D08-01 E □ M:
| Sensing Distance | 1.0mm ± 15% |
| Connection Method | Pre-wired (2M) |
| Operation Mode | NPN NO, PNP NO |
Koino KPX-D08-01 E □ M Inductive Proximity Sensor Technical Specifications
| Specification | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Sensing Distance | 1.0mm ± 15% |
| Set Distance | 0~0.7mm |
| Connection Method | Pre-wired (2M) |
| Operation Mode | NPN NO, PNP NO |
| Shielding | Shielded |
| Response Frequency | 1KHz |
| Power Supply Voltage | 10~30VDC |
| Rated Operating Voltage | 12~24VDC |
| Detectable Object | Ferrous metal |
| Differential Travel | Max. 10% |
| Standard sensing object | Iron, 8X8X1mm |
| Control Output (Load Current) | 100mA max. |
| Control Output (Residual Voltage) | 2.0V max |
| Indicator | Red LED |
| Ambient Temperature (Operating) | -15° C~+55° C |
| Ambient Temperature (Storage) | -30° C~+80° C |
| Ambient Humidity | 35~95%RH |
| Insulation Resistance | Minimum 50MΩ (500VDC) |
| Dielectric Strength | 1,000VAC for 1min. |
| Vibration Resistance | 10~55Hz double amplitude 1.5mm (at X, Y and Z axis) for 2hrs |
| Shock Resistance | 50G |
| Degree of Protection | IP67 |
