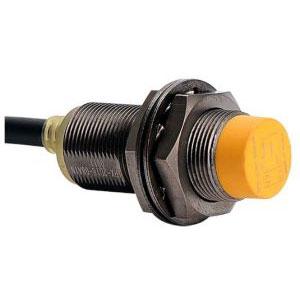

Koino IPX-D18-05E3 - Cylindrical Inductive Proximity Sensor
Technical Specifications of Koino Cylindrical Inductive Proximity Sensor IPX-D18-05E3:
| Sensing Distance | 5.0mm ±10% |
| Connection Method | Pre-wired |
| Operation Mode | PNP NO |
| Size | Ø18 |
Koino IPX-D18-05E3 Cylindrical Inductive Proximity Sensor Technical Specifications
| Specification | Value |
|---|---|
| Sensor Type | DC 3-wire Inductive Proximity Sensor |
| Shape | Cylindrical |
| Size | Ø18 |
| Sensing Distance | 5.0mm ±10% |
| Set Distance | 0~4.0mm |
| Connection Method | Pre-wired |
| Operation Mode | PNP NO |
| Shielding | Shielded |
| Dimensions | M18 × 1 thread |
| Response Frequency | 400Hz |
| Power Supply Voltage | 10~30VDC |
| Rated Operating Voltage | 12~24VDC |
| Detectable Object | Ferrous metal |
| Differential Travel | max. 10% of sensing distance |
| Control Output | max. 200mA |
| Indicator | Red LED |
| Protection Circuits | Surge suppressor, load short-circuit protect, protection circuit of reverse power polarity |
| Ambient Temperature (Operating) | -15° C~+55° C |
| Ambient Temperature (Storage) | -30° C~+80° C |
| Ambient Humidity | 35~95%RH |
| Insulation Resistance | Minimum 50MΩ (500VDC) |
| Dielectric Strength | 1,500VAC 50/60Hz for 1min |
| Vibration Resistance | 10~55Hz double amplitude 1.5mm (at X, Y and Z axis) for 2hrs |
| Shock Resistance | 50G |
| Degree of Protection | IP67 |
| Body Material | Nickel-Plated Brass |
| Sensing Surface Material | PBT |
