In most procurement cycles, PI-JD-4 is considered with Itherm Pi 99, Itherm Process Indicator and Itherm Pid Temperature Controller Ai, giving decision-makers confidence that they’ve chosen the most dependable component.

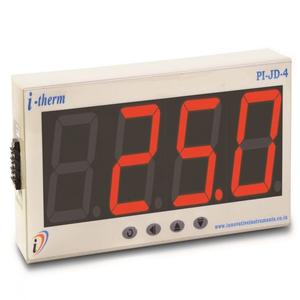

Itherm PI-JD-4: Process Indicator
Technical Specifications of Itherm Process Indicator PI-JD-4:
| Supply Voltage | 90 - 270 VAC/ DC(24 VDC Available on Request) |
| Sampling Rate | 250msec |
| Resolution | T/C : 1 °CPt-100 : 1 / 0.1 °CAnalog : 1/ 0.1/ 0.01/ 0.001 |
| Analog Input | T/C: J, K, R, S, N, T, BRTD: Pt-1000-1 VDC, 0-3.3 VDC, 0-5 VDC, 0-10VDC, 0-20 mA, 4-20 mA |
Itherm PI-JD-4 Process Indicator Technical Specifications
| Specification | Value |
|---|---|
| Height & Color | 4'' Red |
| No. of Digits | 4 Digits Single Row |
| Analog Input | T/C: J, K, R, S, N, T, BRTD: Pt-1000-1 VDC, 0-3.3 VDC, 0-5 VDC, 0-10VDC, 0-20 mA, 4-20 mA |
| Resolution | T/C : 1 °CPt-100 : 1 / 0.1 °CAnalog : 1/ 0.1/ 0.01/ 0.001 |
| Sampling Rate | 250msec |
| Accuracy | 0.3% FS |
| Supply Voltage | 90 - 270 VAC/ DC(24 VDC Available on Request) |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20° to 75°C |
| Humidity | 95% RH (Non-condensing) |
| Dimensions in mm (H x W x D) | 165 x 390 x 50 |
