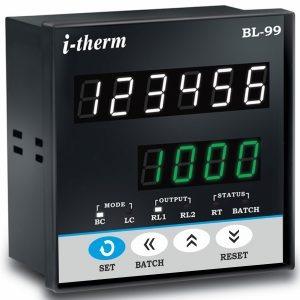

Itherm BL-99: Counters
Technical Specifications of Itherm Counters BL-99:
| Count Setting | Through Keyboard |
| Supply Voltage | 90 - 270 VAC/ DC (24 VDC Available on Request) |
| Output Relay | 5A @ 250 VAC/ 30VDC |
| Output SSR Drive | 12 VDC @ 30mA |
Itherm BL-99 Counters Technical Specifications
| Specification | Value |
|---|---|
| Height & Colour | 0.56'' White & 0.56'' Pure Green |
| No. of Digits | 6 Digits Upper Row & 4 Digits Lower Row |
| LED Indication | (1) Mode (BC/ LC/ PC)(2) Output (RL1, RL2)(3) Status (Batch/ AR) |
| Count Setting | Through Keyboard |
| Count Input | Proximity S/W (PNP/NPN)Potential Free Contact |
| Reset Input | Front Switch & Remote Reset |
| Sensor Supply | 12 VDC @ 30mA SCP |
| Output Relay | 5A @ 250 VAC/ 30VDC |
| Output SSR Drive | 12 VDC @ 30mA |
| Supply Voltage | 90 - 270 VAC/ DC (24 VDC Available on Request) |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20° to 75°C |
| Humidity | 95% RH (Non-condensing) |
| Dimensions in mm (H x W x D) | 96 x 96 x 53 |
