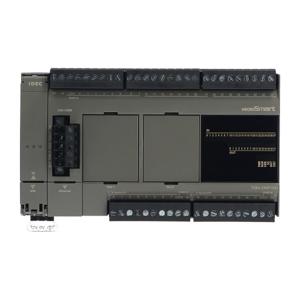

FC6A-C40K1DEJ: Idec Micro Smart PLC
Technical Specifications of Idec Micro Smart PLC FC6A-C40K1DEJ:
| Analog Input Type | 0-10 VDC |
| Program Capacity | 640K Bytes |
| Digital Output Type | Transistor Sink |
| Product Type | Terminal Shape |
Idec Micro Smart PLC FC6A-C40K1DEJ Technical Specifications
| Specification | Value |
|---|---|
| Analog Input Type | 0-10 VDC |
| Battery | BR2032 |
| High-speed Counter | 100 Khz |
| iOS and Android App | WindEDIT Lite |
| Maximum Expandable Serial Ports | 9 |
| Number of Embedded Output | 16 |
| Program Capacity | 640K Bytes |
| Programming Language | Ladder, Script |
| Communication Protocol | Modbus TCP J1939 Modbus RTU |
| IP Rating | IP20 |
| Data register | 56000 |
| Internal relay | 12400 |
| Maximum number of expansion modules | 15 |
| Maximum Analog I/O Points | 12 |
| Maximum Digital I/O Points | 48 |
| Timer | 1024 |
| Embedded Analog IO | 1 |
| Embedded Digital IO | 40 |
| Number of Embedded Input | 24 |
| SD Memory Slot | TRUE |
| Digital Output Type | Transistor Sink |
| Embedded Serial Port | 1 |
| Number of Ethernet Port | 1 |
| USB Port | USB Mini-B |
| Operating Temperature | -25 to 65 deg. C |
| Product Type | Terminal Shape |
| CPU Base Module | Screw terminal |
| Operating voltage | 12VDC |
