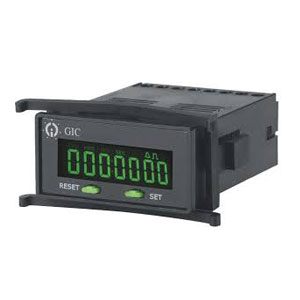

Home GIC Digital Hour Meter & Counter Z Series Z2221N0G2FT00 GIC Z2221N0G2FT00 Digital Hour Meter & Counter The GIC Z2221N0G2FT00 Digital Hour Meter & Counter offers 85 - 265 VAC/DC Supply voltage, -5° C to +55° C operating temperature, Front side: IP40; Terminals: IP20, Housing : IP30 degree of protection , Flush mounting on panel cut-out mounting. Manufactured by GIC under the GIC Digital Hour Meter & Counter category, this model belongs to the GIC Z Series .
Brand GIC Product Type Digital Hour Meter & Counter Model Number Z2221N0G2FT00
GIC Z2221N0G2FT00 Digital Hour Meter & Counter – Technical Specifications Specification Value Supply Voltage 85 - 265 VAC/DC Power Consumption (W) 2 VA / 1W Supply Frequency 50 / 60 Hz Signal Voltage Range 85 - 265 VAC & 100 - 265 VDC Signal Isolation 2kV Output type Relay: 1 NO, Contact Rating: 5 A(Res.) @ 250 VAC/30 VDC, Contact Material: Ag Alloy Display 7 digit LCD , 6.5 mm Height, 12 O’ Clock, Transmissive Number of keys 2 (SET key & RST key) Reset type Auto Reset Hour Meter Functions Accuracy ± 2sec per Day Hour Meter Functions Ranges Hrs : Min : Sec (999:59:59), Hrs : Min (99999:59), Hrs (9999999), Min (9999999), Sec (9999999) Hour Meter Functions Input Signal For Hour counting detection, Signal has to be present for min. 3msec & signal has to be absent for min 20msec. Counter Functions Accuracy 100% Counter Functions Range 1 to 9999999.999 Counter Functions Decimal Point Position(max.) 3 Pre-scaler 4 Digit Counter Functions Input Switching Freq.(max.) 10 Hz for AC and 40 Hz for DC Counter Functions Signal Pulse Width min. 50ms ON/50ms OFF for AC, 12.5ms ON/12.5ms OFF for DC Operating Temperature -5° C to +55° C Storage Temperature -10° C to +60° C Humidity 5 to 95% Rh (Without condensation) Maximum Operating Altitude 2000 m Pollution Degree II Degree of Protection Front side: IP40; Terminals: IP20, Housing : IP30 Enclosure material UL 94 V0 Plastic Casing color Black Mounting Flush mounting on panel cut-out Panel Cut-out 22mm X 44.8mm Weight (Un-packed) 52 gm Operating position Horizontal Termination wire Sizes Wire size : 22-14 AWG, 0.3-2.5 mm
