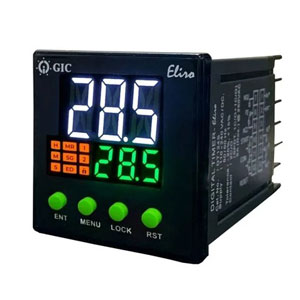

GIC V0DDTS1 Timer
The GIC V0DDTS1 Timers offers 50/60 Hz frequency, -10 C to +55 C operating Temperature, IP 20 for Terminals, IP 30 for Enclosure, IP 40 for Front side degree of protection , 18 X 85 X 76 Dimensions (W X H X D). Manufactured by GIC under the GIC Timers category, this model belongs to the GIC DT Series.
| Brand | GIC |
| Product Type | Timers |
| Model Number | V0DDTS1 |
GIC V0DDTS1 Timer – Technical Specifications
| Specification | Value |
|---|---|
| Timer Description | Multi Function Digital Timer |
| Timing range | 0.1s to 999h |
| Functions | ON Dela, Cyclic OFF/ON, Cyclic ON/OFF, Impulse on Energizing, Accumulative Delay on Signal, Accumulative Delay on Inverted Signal, Accumulative Impulse on Signal, Signal ON Delay, Inverted Signal ON Delay, Signal OFF Delay, Impulse ON/OFF, Signal OFF/ON, Leading Edge Impulse 1, Leading Edge Impulse 2, Trailing Edge Impulse 1, Trailing Edge Impulse 2, Delayed Impulse, Inverted Signal ON Delay. |
| Supply Voltage (Un) | 24 - 240 VAC/DC |
| Supply Variation | -15% to +10% |
| Frequency | 50/60 Hz |
| Power consumption | 0.5 VA (@ 24/48 VAC), 4 VA (@ 110 to 265 VAC/DC) |
| Relay Output | 1 C/O |
| Contact rating | 8A @ 240 VAC / 24 VDC (Resistive) |
| Electrical Life | 1×10^5 |
| Mechanical Life | 2x10^7 |
| Repeat Accuracy | ± 0.5% |
| Reset Time | 200 ms (Max.) |
| Operating Temperature | -10 C to +55 C |
| Storage Temperature | -25 C to +65 C |
| Humidity | 95% Rh |
| Utilization Category AC - 15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A |
| Utilization Category DC - 13 | Rated Voltage (Ue): 125/250 V, Rated Current (Ie): 0.22/0.1 A |
| LED Indication | Red LED, Relay ON |
| Enclosure | Flame Retardant UL94-V0 |
| Degree of Protection | IP 20 for Terminals, IP 30 for Enclosure, IP 40 for Front side |
| Dimensions (W X H X D) in mm | 18 X 85 X 76 |
| Weight (Unpacked) | 85 g |
The GIC V0DDTS1 Timer is designed for high-precision control in demanding industrial environments. With a wide supply voltage range of 24–240 VAC/DC, it supports both AC and DC circuits and offers a flexible timing range from 0.1 seconds to 999 hours. This allows precise delay and interval configurations across short and long durations. The timer includes more than 15 advanced timing functions such as Impulse on Energizing, Signal OFF Delay, Leading and Trailing Edge Impulses, and Accumulative Delays, meeting a wide range of control requirements.
Its single relay output with 1 C/O contact is rated at 8A @ 240 VAC / 24 VDC (resistive load), delivering long-term reliability. The product ensures a repeat accuracy of ±0.5% and a quick reset time of 200 ms max. The robust UL94-V0 flame retardant enclosure offers protection levels of IP20, IP30, and IP40, depending on the area, making it safe for panel installation. It operates within a temperature range of -10°C to +55°C and withstands up to 95% humidity. LED indication for relay status and compact dimensions (18 x 85 x 76 mm) make the V0DDTS1 Timer easy to install and monitor in control cabinets. With a mechanical life of 2×10⁷ operations and electrical life of 1×10⁵ cycles, it is a proven choice for engineers requiring dependable timing solutions.
For engineering students and new professionals, this model provides a practical example of how advanced timing logic works in the real world. It simplifies the implementation of relay logic and makes the panel more efficient. Built with GIC’s proven design standards, the V0DDTS1 Timer is a dependable solution for long-term, mission-critical timing tasks in industrial automation.
