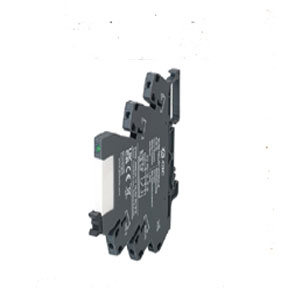

Home GIC Slim Relays SR Series SR24U61RM GIC SR24U61RM Slim Relays The GIC SR24U61RM Slim Relays offers 24 VAC/DC nominal operating voltage, 6A rated contact current, 1500 VA, 180W maximum switching power , Screw connection type. Manufactured by GIC under the GIC Slim Relays category, this model belongs to the GIC SR Series .
Brand GIC Product Type Slim Relays Model Number SR24U61RM
GIC SR24U61RM Slim Relays β Technical Specifications Specification Value Nominal operating voltage 24 VAC/DC Nominal input current 14.1 mA Maximum operating voltage 28.8 VAC/DC Must operate voltage 19 VAC/DC Must release voltage 4.5 VAC/DC Nominal input power 340 mVA Contact type 1 CO Contact material AgNi Contact resistance 100 m ohms at 1A 6 VDC Rated contact current 6A Load voltage range 400 VAC, 125 VDC at reduced load Maximum switching power 1500 VA, 180W Type of connection Screw connection Min. Wire size 0.2 mm2 Maximum wire size 2.5 mm2 Min. Wire size (AWG) 24 Max. Wire size (AWG) 12 Wire stripping length 10 mm Torque 0.8 Nm Dimension (W x H x D) (in mm) 6.2 x 94.5 x 96 Weight (packed) approx. 90 g Bussing Possibility By comb type shorting links Supply voltage indication 3mm green LED Ambient operating temperature -40 to +55 C Mounting Possibility DIN-Rail (35 mm Symmetrical) Housing Material UL 94 V0 Housing Color Dark Grey Input polarity protection Rectifier
